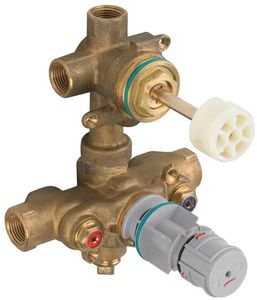

American Standard Gold 2-Handle Thermostat Valve

American Standard

Model #:

R523S

Model #: R523S
587683
American Standard
$99,999.00

At a Glance

The 2-Handle Thermostat from American Standard allows you to shower at a pre-selected water temperature and choose between three separate shower outlets, and an adjustable hot limit safety stop limits the amount of hot water allowed to mix with cold, to reduce the risk of accidental scalding, for a shower that is safer and easier to use than ever before.Read More

Request a Quote
View Delivery & Pickup Options
Add Zip Code

Get to know this product.

Product Overview

Product Overview

High quality brass casting for durability and long life

Built-in diverter allows the user to choose between 2 and 3 separate outlets

Wax Thermostatic unit maintains the pre-selected constant water temperature

Back to Back Capable: hot and cold can be reversed

Spring-loaded Check valves prevents the cross flow of hot and cold water

Integrated stop valves ensure easy cleaning and servicing

Adjustable hot limit safety stop reduces the risk of accidental scalding

Maximum water temperature limit may be reduced to 104 or 109 degrees Fahrenheit

Compatible With

Town Square Shower Trim Kit

Serin Shower Trim Kit

Green Tea Shower Trim Kit

Times Square Shower Trim Kit

Moments Shower Trim Kit

Berwick Shower Trim Kit

Portsmouth Shower Trim Kit

Quentin Shower Trim Kit

Useful Documents
Specification Sheet
Installation Instructions
Specifications

General Specs

Height (in.)7.75
Valve FunctionThermostatic
Pressure BalancedYes
Shower Valve TypeThermostatic Valves
Cec CompliantNo
Watersense CertifiedNo
Low Lead CompliantNo
Scald GuardYes
Cartridge IncludedYes
Color Finish NameGold
MaterialMetal
Trim IncludedNo
ColorGold
Inlet Diameter.5"
Outlet Diameter (in.).5"

WarningProposition 65 Warning for California Residents
