Gefen Analog to Digital Audio Adapter

Gefen

Model #:

GTV-AAUD-2-DIGAUD

Model #: GTV-AAUD-2-DIGAUD
401210
Gefen
$99,999.00

At a Glance

Product Dimensions 1.8"h x 1.8"w x .9"d

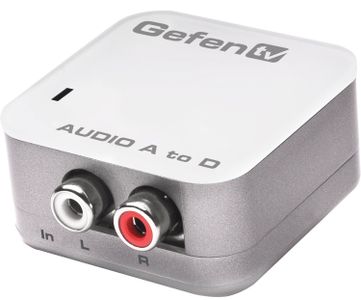

The GefenTV Analog to Digital Audio Adapter converts analog Left/Right RCA-style audio connections to digital S/PDIF or TOSLINK outputs. The unit is compact, easy to install, and operates in a wide variety of operating conditions.Read More

Available in Store Only
View Delivery & Pickup Options
Add Zip Code

Get to know this product.

Product Overview

Product Overview

Converts analog L/R signals to digital S/PDIF or TOSLink

Compact and easy to install

Simple to Operate

Supports 48 kHz output sampling frequency

Coaxial and optical output ports

Right and Left RCA Stereo input ports

Supports optical cable run of up to 5 meters (15 feet)

Useful Documents
Specification Sheet
Quick Start Guide
Specifications

General Specs

Product Weight (lbs.)1
Depth (in.).9
Width (in.)1.8
Height (in.)1.8
Voltage5
Amp.36
Manufacturer Warranty2 Year
Color Finish NameWhite

General

Signal To Noise Ratio>90dB (20Hz-20kHz A weight filter)
THD+N< 0.01% at 1kHz at reference level
Frequency Response< +/- 0.5dB 20Hz-20kHz
Crosstalk< -85dB
RMS Level (CH1 / CH2)1.0 Vrms analog input at the -7.4 dBFS digital output level
Operating temperature0-48 deg. C
Power Supply5V DC / 0.36A
Dimensions1.8" W x 1.8" H x 0.9" D
Weight1 lb.

In The Box

GefenTV Analog-to-Digital Audio Converter(1)
5V DC external power adapter(1)
