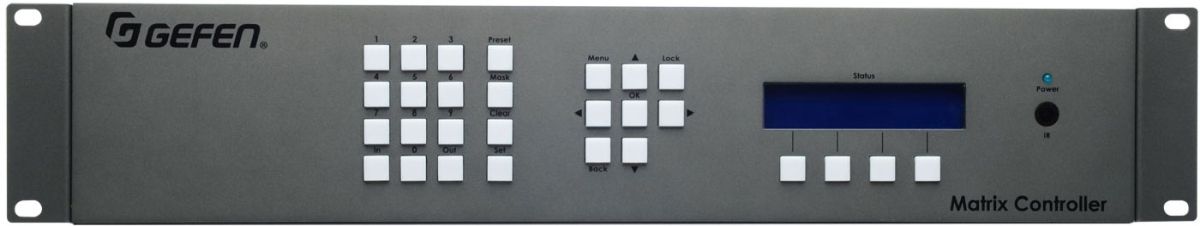

Product Overview
End-users can control matrix routing and access presets, no matter the size and complexity of the system. It also manages access to the AV network, providing two independent levels of security for administrators and end-users. With applications ranging from broadcast, rental/staging, control rooms, security, digital signage, campus/education, to multi-room AV, the EXT-CU-LAN provides a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any high performance system that needs to interface with multiple sources and displays, AV formats, and resolutions in a dynamic environment.
Features
Detects, configures, and controls all Gefen Video and KVM over IP products.
Built-in web server allows access from any web-enabled device, including phones, tablets, and PCs
Two Ethernet ports with independent IP and MAC Addresses allow segregation of Video/KVM LAN and control LAN, and help provide separate security layers for administrators and end-users.
Seamless integration with Gefen Syner-G software allows for quick installation and configuration on a network
Automatic assignment of IP addresses for all Gefen Video and KVM over IP devices on a network
Front panel control push-buttons/display, handheld IR remote, and web server interface allow easy and convenient end-user operation
Automation control system interface via Telnet and UDP
POE (Power Over Ethernet) on LAN 1 port eliminates the need for an external power supply
Password-protected independent user and administrative access
Easy to read 2 line/20 characters per line Liquid Crystal Display
System Configuration Upload/Download function
Plug-and-Play installation with little to no set-up
Locking power supply connector
2U tall rack-mountable enclosure, detachable rack ears included
Slanted front panel for ergonomic push-button access and display visibility when placed on a table
