Product Overview

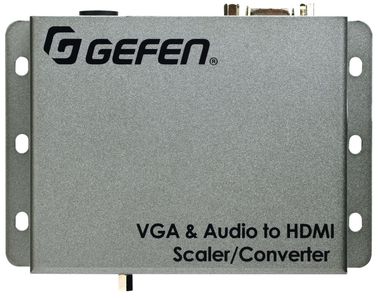

The Gefen EXT-VGAA-HD-SC scales and converts video from a VGA source to digital video from an HDMI output. It can also embed analog L/R audio into HDMI. Video can be scaled up to 1080p Full HD and 1920 x 1200 (WUXGA). An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.
Converts and scales VGA and L/R analog audio to HDMI
Input resolutions up to 1920 x 1200 (WUXGA)
Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)
On-screen display (OSD) menu allows easy set-up and control
Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
Test Pattern Generator for quick system configuration
Embeds 2-channel analog stereo audio in HDMI signal
Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings
USB port for use with Gefen Syner-G™
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
Surface mountable
