Product Dimensions 78"h x 30"w x 29.75"d

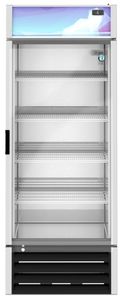

The FM-23-HC glass door merchandiser is a single section freezer with a full glass swing door is the perfect packaged product display for any operation. It boasts an impressive storage capacity of 20.71 cubic feet.Read More
Storage capacity of 20.71 cubic feet
Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
Energy saving hot gas loop and an electric glass door heater
Large glass swinging door is energy efficient Low-E multi pane glass
Door is mounted on heavy duty hinges with self-closing mechanism
Forced air evaporator for quick temperature pull down
Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
Time-initiated automatic defrost
Silver painted galvanized steel exterior, white steel interior with stainless steel floor
Dependable interior dial controller and side mount thermometer (°F or °C)
Environmentally friendly R290 refrigerant
Energy efficient LED interior product lights and exterior canopy lights
Refrigerant flow is controlled with a capillary tube
Includes (5) white epoxy coated wire coated wire shelves with product stops
Stainless steel shelf clips adjustable in 1/2″ increments on anodized aluminum supports
Standard with (4) 2″ leveling legs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Amperage: 4.8, Max Fuse/HACR Breaker: 15A
Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 127V, Control Setpoint Range: -10 – 0°F, Refrigerant: R290 (10.58 oz.)
Time-initiated automatic defrost
Nominal storage capacity: 20.71 ft3, Door opening: 25.25″ W x 25.25″ D x 60.5″ H, Depth with door fully extended: 58.75″ D, Shelves included: 5
General Specs | |
| Width (in.) | 30 |
| Depth (in.) | 29.75 |
| Height (in.) | 78 |
| Defrost System | Manual |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years Compressor |
| Color | Silver |
| Depth w/Door Open 90 Degrees (in.) | 58.75 |
| Installation Type | Freestanding |
| Door Color | Silver |
| Depth Type | Standard Depth |
| Overall Height (in.) | 78 |
| Door Panel Type | Glass |
| Garage Ready | No |
| Color/Finish Name | Silver |
| Door Swing Option | Right Hinge |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Total Capacity (cu. ft.) | 20.71 |
| Shipping Depth (in.) | 32.5 |
| Shipping Width (in.) | 33 |
| Shipping Height (in.) | 85.25 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 4.8 |
| Freezer Features | LED Light, Temperature Display, Temperature Control |
