Product Dimensions 79.5"h x 27.5"w x 34.5"d

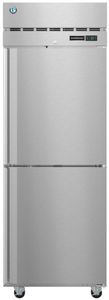

The F1A-HS Steelheart Series Upright single section freezer with a half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C) with a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens.Read More
Unique “ducted” air distribution system
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit required)
One piece, full door length, extruded aluminum flush mount door handle
Lockable half stainless door
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
Solid state control system with temperature alarms and LED display (°F or °C)
R290 refrigerant
(4) 4″ Stem Casters (2 with brakes) are standard
Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
Optional Kits: 6″ legs, epoxy or stainless steel shelves, tray/pan slides, foot pedal door opener, additional air filter
Nominal Compres. of 1425 BTU/hr at 3/4 HP
115v/60/1, 10 ft. cord and plug
Top mounted energy efficient non-electric evaporation system
General Specs | |
| Width (in.) | 27.5 |
| Depth (in.) | 34.5 |
| Height (in.) | 79.5 |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 59.25 |
| Installation Type | Freestanding |
| Door Color | Stainless Steel |
| Depth Type | Standard Depth |
| Overall Height (in.) | 79.5 |
| Collection Code | F1A |
| Door Panel Type | Solid |
| Garage Ready | No |
| Color/Finish Name | Stainless Steel |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 36 |
| Shipping Height (in.) | 81 |
| Voltage | 104-126 |
| Amp | 8.46 |
| Freezer Features | LED Light, Door/Child Lock |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45 to 100°F |
| Control Setpoint Range | -10° to +12°F |
| Energy Consumption (kWh/day) @NSF | 7.73 |
| Heat Rejection (BTU/Hr.) @NSF | 1178 |
| Approximate Nominal Compres. BTU/HR (HP) | 1425(3/4HP) |
| Refrigerant / Charge Amount (oz) | R290 / (4.1 oz) |
| Door Opening Width x Height | 21.75” x 27.75” |
| Shelf Dimensions (W x D) | 21.25” x 26” |
| Interior Storage Capacity (CF) (AHAM) | 23.10 ft3 |
