Product Dimensions 31.9"h x 48"w x 30"d

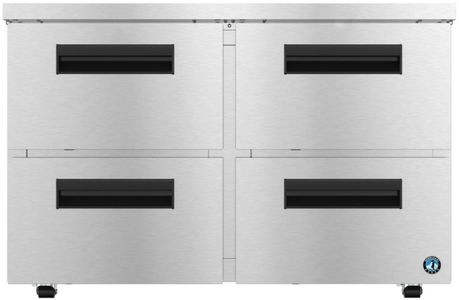

The UF48B-LPD4 Steelheart Series Undercounter two section low profile freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 12 cubic feet this efficient undercounter low profile freezer and front air flow design is perfect for hot/tight kitchens.Read More
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Drawers Capacity: Bottom drawers will accommodate (1) 1/2 size pan and (1) 1/3 size pan. Top drawers will accommodate (1) 1/2, (1) 1/3, (1) 1/4 , and (1) 1/6 size pans. Alternate pan orientation (top drawers only) provides (1) full size pan positioned front-to-back and (3) 1/9 size pans (pans by others)
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 2.25″ Stem Casters (2 with brakes) are standard
At only 31.9″ tall, low profile freezer is ADA compliant
Optional Kits: 4″ or 6″ casters, over shelves (single or double), stainless steel back, drawer divider bars (vertical or horizontal), drawer liner (upper or lower)
Nominal Compres. of 1426 BTU/hr at 1/3+ HP
115v/60/1, 10 ft. cord and plug
General Specs | |
| Width (in.) | 48 |
| Depth (in.) | 30 |
| Height (in.) | 31.9 |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 51.5 |
| Installation Type | Freestanding |
| Depth Type | Counter Depth |
| Overall Height (in.) | 31.9 |
| Collection Code | UF48B |
| Garage Ready | No |
| Color Finish Name | Stainless Steel |
| ADA Compliant | Yes |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 52.5 |
| Shipping Height (in.) | 35.5 |
| Voltage | 104-126 |
| Amp | 4 |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | -18° to 10°F |
| Energy Consumption (kWh/day) @NSF | 3.6 |
| Heat Rejection (BTU/Hr.) @NSF | 756 |
| Approximate Nominal Compres. BTU/HR (HP) | 1426(1/3+HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.6 oz) |
| Door Opening Width x Height | 19.5” x 23” |
| Adjustable Shelves / Shelf Dimensions (W x D) | 1 / 21.5” x 16” |
| Interior Storage Capacity (CF) (AHAM) | 12 ft3 |
| Depth with Drawer Fully Open (including 1” bumper) | 51” |
