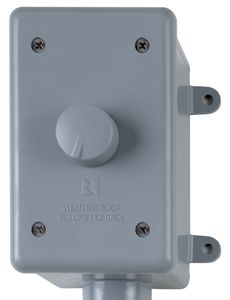

The WALTx-2 is a weatherproof 126-watt volume control in a surface-mount PVC enclosure. It connects between the speaker outputs of an amplifier or receiver and a pair of speakers.Read More
Designed for outdoor or wet locations, the WALTx-2 can be mounted on an exterior wall or other flat surface, as well as directly on a section of 3/4" PVC conduit. The WALTx-2 provides convenient control of your speakers with superior resistance to moisture from rain, splash, or sauna.
Using Ultra-Match technology, the WALTx-2 allows installers to easily match the load of multiple speaker pairs to the amplifier impedance without the need for a speaker selector or other impedance-matching equipment.
All Russound volume controls are made with precision autoformers for high-fidelity sound, excellent frequency response, no heat buildup, and maximum power transfer from the amplifier to the speakers.
Russound ALTx-series volume controls conform to UL and CSA standards to assure that they’re designed and tested for safety.
Provides accessible control of speakers in outdoor or wet locations
Selects 11 steps of volume plus off
Allows impedance matching for up to 16 speaker pairs per system
Precision autoformers assure long life and superior performance
General Specs | |
| Connector Type | 4-Pole Screw Terminal Blocks |
| Connection Type | 4-Pole Screw Terminal Blocks |
General | |
| Volume Control | Yes |
| Sold As | Each |
| Shipping Dimensions | 8.9" (W) x 4.7" (H) x 6.4" (D), (22.6 x 11.8 x 16.3 cm) |
| Shipping Weight | 1.9 lbs (0.8 kg) |
| Connector(s) | 4-pole screw terminal blocks |
| Enclosure | Surface-mount weatherproof PVC case with cover and recess for 3/4" (1.9 cm) PVC conduit |
| Frequency Response | 20 Hz - 20 kHz, +1.0/-0.5 dB at rated power |
| Impedance Matching Type | Autoformer |
| Max Wire Size | 12 AWG (2.4 mm) |
| Power Handling | 126 watts peak, 42 watts RMS continuous per channel |
| Speaker Impedance | Min: 4 ohms |
| Volume Control | 12 steps including Off; total attenuation 48 dB |
